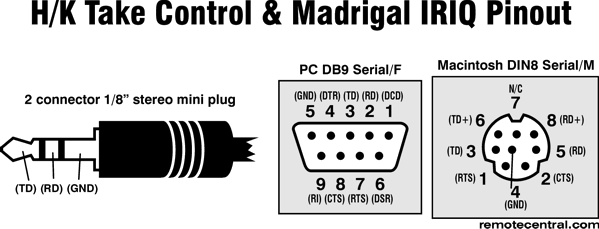

This is a pinout diagram for the serial cable used with the Harman/Kardon Take Control and Madrigal IRIQ remote controls. Please note that wiring your cable incorrectly could damage your computer or remote. Use a female DB9 PC connector, or a male Mini-DIN8 Mac connector.
